Pig Electric Fencing Kit
This kit is designed to give up to 200 meters of fencing with three lines.
Please click here to read more on fencing pigs
This kit comes with an Gemini 40 high power energiser that can run from either the Mains or from a 12 Volt Battery. This kit has everything you need, with exception of a battery if you choose to run it from a battery or lead out wire if you run it from the mains (add these, according to your needs) to set up a 200 metre electric fence with 3 lines of wire. It includes:

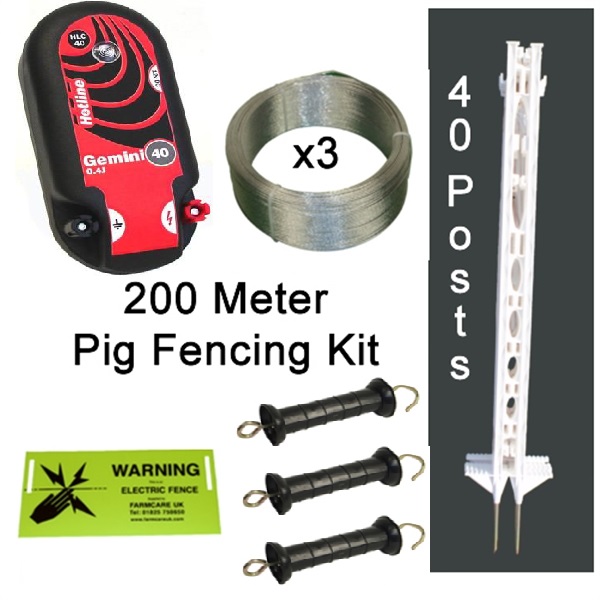

THE STANDARD KIT CONTAINS -
1 x Dual power Gemini 40 energiser complete with stand and mini earth stake. Made in the UK with a 3 year warranty.
3 x 200m rolls of 1.5mm stranded steel wire
40 x 3ft white posts
3 x standard gate handles
1 x warning sign
1 x fence tester
You will need to add a 12v Leisure Battery. This energiser gives you the best of both worlds, it can be clipped onto a 12v battery or plugged into the mains with the mains adaptor supplied.
There is an option to use 3ft plastic fence posts or upgrade to metal pig tail fence posts.
We have included with the upgrade 135 pig tail insulators for the posts to hold the wire. These are not required with plastic posts.
The kit uses galvanised stranded steel wire - this is easy to use, very strong and because it is pure steel it is exceptionally conductive.
Standard Kit comes with 40 x 3ft Plastic posts
Metal Kits comes with 40 x Metal Pig tail posts
PLUS 150 metal post insulators
This kit needs a 12v battery
Or, high voltage lead out wire if you are running it from the mains
Make this kit solar with a 10w solar panel which you add to charge your 12 volt battery
What height to put the fence line at?
Please do not take these heights as cast in stone you will need to adjust the heights depending on breed size, age and the mix of age range.
Adult full size pigs only
Two lines at 25 cm and 45 cm
Piglets and adults
Three lines at 15 cm, 25 cm, 40 cm
A customer recently sent us this image of his pigs and fence set up. It looks great!
More details about the Hotline Gemini 40 energiser, made in the UK:
This energiser is a real gem. Made here in the UK, it can work from either a 12 volt leisure battery OR from the mains. This gives you flexibility to move your fence around, should you need to. It can power up to 8km under perfect conditions, and up to 4km with medium vegetation. It has an 0.45 output Joule rating. It is ideal for paddocks, strip grazing and poultry nets.
It comes with a 5 year warranty.
The energiser will run off a 12 volt battery for approximately 5 weeks, and it has a low battery and electric fence pulse indicator. It is good for all electric fence rope, tape, wire and twine.
The Gemini 40 comes with earth, fence and battery leads and 12v mains adaptor; it can be mounted on either a wall or wooden post, or the stand included with the energiser. The stand will work as an earth stake for most small to medium fences. For larger fences, you may need to add a 50cm earth stake.
- Stored energy - 0.8 Joules
- Output energy - 0.45 Joules
- Fence voltage max - 7,500v
- Fence voltage at 500ohms - 3,900v
- Current consumption - 85mA
1 x 47HLC40
3 x 47P22
3 x 15817SW
4 x 47CP3000W-10
1 x 47N40
1 x 47P70
